CUMMINS GENERATOR

  • CUMMINS 800KW

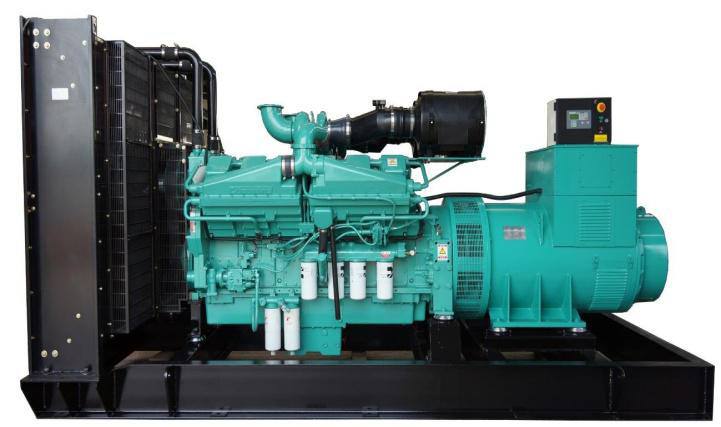

CUMMINS 800KW

CUMMINS 800KW

  • cummins power
  • KTA38-G5
  • diesel generator
  • open type
  • Product description:
  • INQUIRY

Powered by CUMMINS | 400V, 1500RPM, 50Hz
FKSPOWER Standby Standby Prime Prime Engine Dimension mm
Model kVA kW kVA kW Model Open Type
HJ-C28 28 22.4 25 20 4B3.9-G1 1760*760*1380
HJ-C30 30 24 27.5 22 4B3.9-G1 1760*760*1380
HJ-C40 44 35.2 40 32 4BT3.9-G1 1760*760*1380
HJ-C65 65 52 60 48 4BTA3.9-G2 1760*760*1380
HJ-C70Q 69 55.2 62.5 50 QSB3.9-G2 1800*760*1380
HJ-C80 80 64 72.5 58 4BTA3.9-G11 1760*760*1380
HJ-C90 90 72 80 64 4BTA3.9-G11 1760*760*1380
HJ-C90Q 90 72 81 64.8 QSB3.9-G3 1760*760*1380
HJ-C103 102 81.6 94 75.2 6BT5.9-G1 2300*830*1700
HJ-C110 109 87.2 100 80 6BT5.9-G2 2300*830*1700
HJ-C110Q 110 88 100 80 QSB5.9-G2 2300*830*1700
HJ-C125 125 100 115 92 6BTA5.9-G2 2300*830*1700
HJ-C140Q 140 112 125 100 QSB5.9-G3 2350*830*1700
HJ-C142 142 113.6 130 104 6BTAA5.9-G2 2350*830*1700
HJ-C170 170 136 156 124.8 6BTAA5.9-G12 2390*860*1850
HJ-C175 175 140 160 128 6CTA8.3-G1 2390*860*1850
HJ-C200 200 160 180 144 6CTA8.3-G1 2390*860*1850
HJ-C200 200 160 180 144 6CTA8.3-G2 2390*860*1850
HJ-C200Q 200 160 180 144 QSB6.7-G4 2390*860*1850
HJ-C220 220 176 200 160 6CTAA8.3-G2 2450*960*1850
HJ-C275D 275 220 250 200 6LTAA8.9-G2 2500*960*1850
HJ-C275Q 275 220 250 200 QSL8.9-G4 2500*1200*1850
HJ-C350D 340 272 310 248 6LTAA9.5-G1 2500*1160*1850
HJ-C500DQ 500 400 450 360 QSZ13-G3 3400*1258*2050
HJ-C275N 275 220 250 200 NT855-GA 3020*1100*1850
HJ-C350 325 260 300 240 MTAA11-G3 3020*1100*1850
HJ-C360 350 280 320 256 NTA855-G1B 3020*1100*1850
HJ-C375 375 300 344 275.2 NTA855-G2A 3020*1100*1850
HJ-C400 388 310.4 350 280 NTA855-G4 3020*1100*1850
HJ-C412 412 329.6 375 300 NTAA855-G7 3090*1100*1850
HJ-C440Q 438 350.4 400 320 QSNT-G3 3090*1100*1850
HJ-C450 450 360 NA NTAA855-G7A 3090*1100*1850
HJ-C500 500 400 450 360 KTA19-G3 3400*1258*2050
HJ-C550 550 440 500 400 KTA19-G3A 3400*1258*2050
HJ-C550 550 440 500 400 KTA19-G4 3400*1258*2050
HJ-C650 650 520 NA KTA19-G8 3650*1500*2050
HJ-C660 650 520 575 460 KTAA19-G6 3650*1638*2050
HJ-C688 688 550.4 NA KTAA19-G6A 3650*1638*2050
HJ-C700Q 700 560 635 508 QSK19-G4 3650*1638*2050
HJ-C825 825 660 750 600 KTA38-G2 4550*2100*2320
HJ-C880 880 704 800 640 KTA38-G2B 4550*2100*2320
HJ-C1000 1000 800 910 728 KTA38-G2A 4550*2100*2320
HJ-C1100 1100 880 1000 800 KTA38-G5 4750*2100*2320
HJ-C1250 1250 1000 NA #VALUE! KTA38-G9 4750*2100*2320
HJ-C1375Q 1375 1100 1250 1000 QSK38-G5 5000*2200*2500
HJ-C1375 1375 1100 1250 1000 KTA50-G3 5000*2200*2500
HJ-C1500 1540 1232 1400 1120 KTA50-G8 5820*2200*2800
HJ-C1500E 1650 1320 1400 1120 KTA50-G8 5820*2200*2800
HJ-C1600 1650 1320 1500 1200 KTA50-GS8 5820*2200*2800

Manufacturer / Model: CCEC Cummins KTA38-G5, 4-cycle
Air Intake System: Turbo, Air/Water cooling
Fuel System: PT type fuel pump, EFC
Cylinder Arrangement: 12 in “V”
Displacement: 37.8L
Bore and Stroke: 159*159(mm)
Compression Ratio: 13.9:1
Rated RPM: 1500rpm
Max. Standby Power at Rated RPM: 970KW/1319HP
Governor Type: Electronic
Exhaust System
Exhaust Gas Flow: 198.36m3/min
Exhaust Temperature: 513℃
Max Back Pressure: 10kPa
Air Intake System
Max Intake Restriction: 6.23kPa
Consumption: 72.78m3/min
Intake Flow: 1140m3/min
Fuel System
100%( Prime Power) Load: 202 g/kWh
75%(Prime Power) Load: 207 g/kWh
50%(Prime Power) Load:: N/A
100%( Prime Power) Load: 205.1L/h
Oil System
Total Oil Capacity: 135L
Oil Consumption: ≤4g/kwh
Engine Oil Tank Capacity: 121~151L
Oil Pressure at Rated RPM: 310-448kPa
Cooling System
Total Coolant Capacity: 280L
Thermostat: 82-93℃
Max Water Temperature: 104℃
